What is ULTRANY® CHA® BOPA Film for Functional Coating?
ULTRANY® CHA® is a speciality coating-grade BOPA film produced via the Lisim linear-simultaneous-stretching technology for functional coating applications. This coating-grade BOPA film is designed for high-performance applications requiring high-quality flatness and good isotropic performance. Due to the use of the Lisim process, this oxygen barrier-coating-substrate exhibits a very smooth and even surface, which is necessary for producing high-quality, thin, and defect-free functional layers. The heat-resistant BOPA film for lamination has a wide temperature range and a low heat-shrinkage of <1.8% (MD) at 160°C and thus provides a stable dimensionality during high-intensity drying and retort processes.
The smooth and flat BOPA film can serve as a perfect carrier for barrier coatings such as PVDC or alumina, as well as for special anti-fog or UV-barrier-treatments. The PA6 coating-base film has a tensile strength of 220/250 N/mm² (MD/TD) and 10N puncture resistance and therefore provides a robust mechanical protection for complex composite structures. The coating-grade BOPA film additionally increases the retail attractiveness by providing excellent optical properties with a high gloss and a haze value of 4.0%. In addition, the oxygen-transmission-rate of 50 cc/(·day·atm) of the oxygen barrier-coating-substrate guarantees a long-lasting preservation of the content.
Example Case Study: Improving Coating Speed and Precision:
A major producer of flexible printed circuit boards (FPCs) experienced problems with surface defects and warping in the past with conventional nylon substrates for insulating coatings. After replacing these with ULTRANY® CHA® coating-grade BOPA film, the customer profited from the improved flatness and isotropy due to Lisim technology. The flat and smooth BOPA film enabled a 15% increase in coating-line speed, while simultaneously reducing the amount of defective film due to warping by 20%. This improvement in reliability led to a substantial rise in the level of customer satisfaction, which contributed to a strong increase in orders for high-precision electronic components and ultimately to a significant growth in quarterly sales for the client.
| Thickness μm | Corona | Width mm |
| 15 | Single Side | 300-1380 |
Basic Info.
| Model NO. | ULTRANY® | Thickness | 15 |
| Transport Package | Carton Package | Specification | CHA® |
| Trademark | Changsu | Origin | China or Indonesia |
Benefits of ULTRANY® CHA® BOPA Film for Functional Coating:
High-Performance Surface Flatness: The extremely flat and smooth surface of the BOPA film enables excellent adhesion of the functional coatings.
Heat Resistance: ULTRANY® CHA® is a heat-resistant BOPA film for lamination and maintains its dimensions during high-temperature retorting.
Excellent Optical Properties: High transparency and 4.0% low haze improve the appearance of luxury packaging.
High Mechanical Strength: The high tensile strength and 10N puncture resistance prevent mechanical damage to the coating.
Good Isotropy: The very good isotropy due to Lisim technology ensures equal performance in all directions of the film-web.
Heat resistant BOPA film for lamination
BOPA Film for Functional Coating
PA6 coating base film

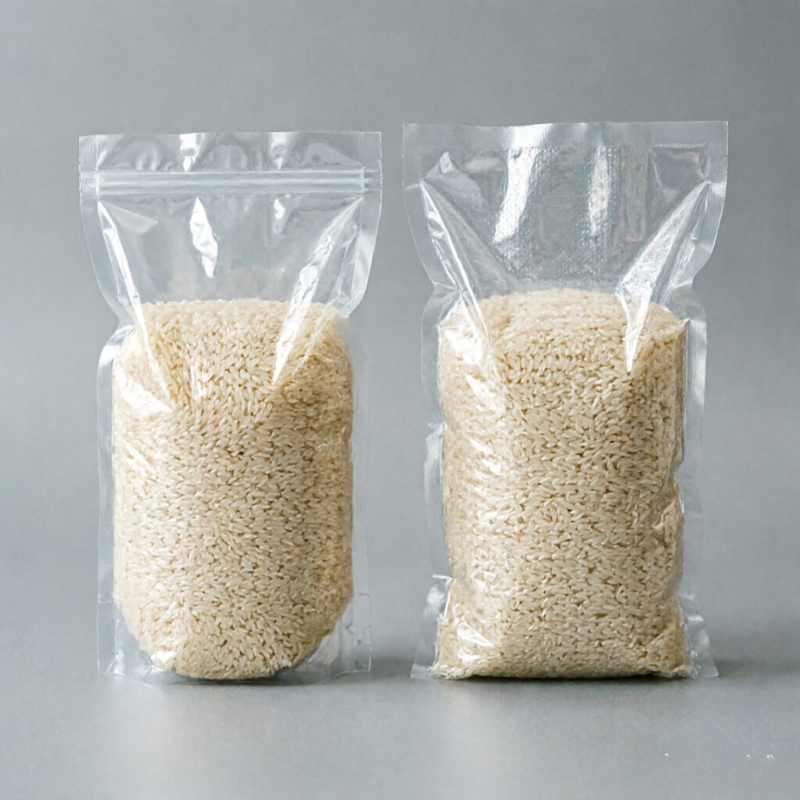

Oxygen barrier coating substrate
ULTRANY® CHA® BOPA Film for Functional Coating Additional Food-Based Applications:
Extended Shelf-Life of Processed Sausages: Application of oxygen barrier coating substrate technology to extend shelf-life of processed sausages.
Clear Visibility for Fresh Vegetables: Use of functional coatings on the PA6 coating-base film to maintain clear visibility for fresh vegetables.
Transparent Metal-Free Barrier Films: Use of coating-grade BOPA film for transparent metal-free barrier films for snacks.
Sterilizable Retort-Soup-Pouches: Use of heat-resistant BOPA film for lamination to withstand 121°C sterilisation cycles.
ULTRANY® CHA® BOPA Film for Functional Coating Applications for Non-food Based
Flexible Circuit Boards: Insulating PA6 coating-based film for flexible circuitry in mobile phones and wearables.
Luxury Skincare Packaging: Smooth and flat BOPA film for creating a high-gloss finish for luxury skincare brands.
Protective Label and Tape Films: Robust coating-grade BOPA film carrier for heavy-duty protective tapes and labels.
Antistatic Medical Packaging: Oxygen barrier-coating-substrate for precise medical-instrument protection.
ULTRANY® CHA® BOPA Film for Functional Coating Product Parameters
| Typical Properties | Test Method | Units | Typical Value | |
| Thickness | - | μm | 15 | |
| Puncture Resistance | GB/T 10004-2008 | N | 10 | |
| Tensile Strength | MD | ASTM D882 | MPa | 220 |
| TD | 250 | |||
| Elogation at Break | MD | ASTM D882 | % | 110-130 |
| TD | 90-120 | |||
| Heat Shrinkage | MD | ASTM D1204 (100ºC, 10min) | % | ≤ 1.8 |
| TD | ≤ 1.5 | |||
| Dynamic COF | Treated Side/ Untreated Side | ASTM D1894 | - | 0.50/0.35 |
| Surface Tension | Treated Side/ Untreated Side | ASTM D2578 | mN/m | 54/39 |
| Haze | ASTM D1003 | % | 4 | |
| Oxygen Transmission Rate | 23°C, 50% RH | cc/(㎡.day.atm) | 50 | |
Length (m): Standard 6000 or 12000
With(mm): 300-1380
Paper core (inches): 3, 6
Packaging: 9/4 rolls/pallet
Remark:
The above data represent general film performances and are provided as references only.
Changsu reserves the right to adjust product specifications at any time in order to continue innovating, without prior notification.
Will ULTRANY® CHA® BOPA Film for Functional Coating Work for My Application?
Why is ULTRANY® CHA® a better coating-grade BOPA film?
ULTRANY® CHA® uses Lisim simultaneous stretching technology, which produces a flat and smooth BOPA film with excellent isotropy and, hence, ensures a stable and uniform film during high-speed coating, avoiding defects caused by uneven surfaces of standard nylon substrates.
How does this film function as an oxygen barrier coating substrate?
Although the basic PA6 coating-base film has a transmission rate of 50 cc/(·day·atm), the smooth surface of the film provides an optimal basis for secondary barrier coatings. Thus, the coating-grade BOPA film is a perfect carrier for Alumina or PVDC layers to generate ultra-high barrier packaging.
Is this film suitable as a heat-resistant BOPA film for lamination?
Yes, certainly. ULTRANY® CHA® is designed for high-heat environments with a heat shrinkage of <1.8% at 160°C and, therefore, is a highly reliable heat-resistant BOPA film for lamination in retort packaging or in high-temperature processes involving heat-sealable coatings.
Can this film be used for generating sufficient transparency for luxury packaging?
Yes, the film exhibits excellent transparency and high gloss with a low haze of 4.0%, enabling a high-quality appearance of luxury cosmetics and skincare products.
What is the puncture resistance of this PA6 coating-base film?
ULTRANY® CHA® coating-grade BOPA film possesses a puncture resistance of 10N. In combination with high tensile strength, this ensures that the heat-resistant BOPA film for lamination remains durable throughout processing and end use.
What is the production capacity of this coating-grade BOPA film?
Xiamen Changsu has a huge global production capacity of 150,000 tons per year and is still expanding. Therefore, we can provide a stable and reliable supply of PA6 coating-based film and oxygen barrier-coating-substrate-materials for the large-scale industrial and packaging customers.
Technical Service Benefits
1
24/7 Technical Support
Provide technical support around the clock to help you optimise your coating and laminations.
2
Wide Range of Width Options
We offer a wide range of width configurations from 300 mm up to 1380 mm for your respective coating machinery.
3
Reliable Global Inventory
Our 150,000 tons per year production capacity ensures a stable stock and fast delivery for global coating projects.
CHANGSU Introduction
Xiamen Changsu Industrial Co., Ltd. (Changsu) was founded in 2009 and is one of the world's leading companies that combine R&D, intelligent manufacturing, and global application in film materials. With production sites in China and Indonesia of over 450,000 m², Changsu is a worldwide renowned supplier of high-performance films.
Driven by the slogan "Better Materials, Better Life," Changsu is focusing on sustainable and functional films for human health and safety, including new-energy films, bio-based biodegradable films, and functional BOPA films, whose production and sales belong to the global top.
Changsu is proud to be the first Chinese member of the UN FAO SAVE FOOD initiative and contributes innovative materials for global food safety.
